Mastering GraphQL with Java and Spring Boot: Build an Event Booking App

Introduction

GraphQL is a powerful query language and runtime for APIs that allows clients to request exactly the data they need. You can think of GraphQL as SQL for APIs where you can select the fields and join the data you need based on a schema. In this comprehensive guide, we'll explore GraphQL fundamentals and build a complete event booking application using Java and Spring Boot.

Before we dive into GraphQL, let's have a look at the evolution of API technologies.

Evolution of RPC/API Technologies

Initially, we had technologies like CORBA (Common Object Request Broker Architecture) and RMI (Remote Method Invocation) for building distributed systems. These technologies were complex and had limitations like language-specific bindings and lack of interoperability.

Then SOAP (Simple Object Access Protocol) was introduced as a standard for exchanging structured information in XML format. SOAP messages were typically sent over HTTP, but they were verbose and complex.

Introduction of REST completely changed the way APIs were built. In REST we identify resources using URIs and use standard HTTP methods like GET, POST, PUT, DELETE to interact with the server. REST APIs are easy to understand and implement and easy to integrate with web applications. REST APIs usually use JSON for data serialization and continue to be most widely used for building APIs.

However, like any other technology REST APIs also have some limitations which make them not suitable for some use cases. gRPC and GraphQL emerged as alternatives to address such scenarios.

Related topics:

• gRPC with Java and Spring Boot

How REST APIs Work and Limitations

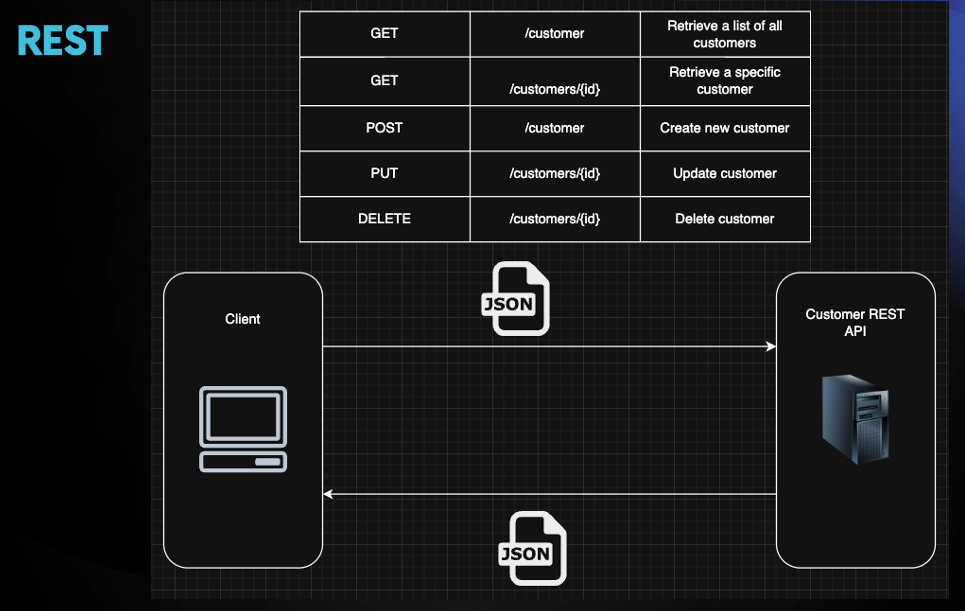

Before diving into GraphQL, let's have a look at how traditional REST APIs work:

In REST a resource is identified by a URI (Uniform Resource Identifier), and clients interact with the server using standard HTTP methods like GET, POST, PUT, DELETE. The server sends responses usually in JSON format. REST mostly use HTTP/1.1 for transport.

While REST is simple and widely adopted, it has limitations for some use cases:

• Over-fetching: Getting more data than needed
• Under-fetching: Requiring multiple requests to get related data
• Versioning challenges: Breaking changes require new API versions
• No standard contract: API documentation often becomes outdated

GraphQL emerged as a solution to these problems at Facebook and then it was open-sourced in 2015.

What is GraphQL?

GraphQL is a query language and runtime for APIs that provides a complete and understandable description of the data in your API. It gives clients the power to ask for exactly what they need and nothing more, making it easier to evolve APIs over time.

Key Characteristics of GraphQL

• Single Endpoint: Unlike REST APIs that require multiple endpoints, GraphQL uses a single endpoint for all operations
• Strongly Typed: GraphQL APIs are organized in terms of types and fields, not endpoints
• Client-Driven Queries: Clients specify exactly what data they need
• Real-time Subscriptions: Built-in support for real-time data with subscriptions
• Introspection: APIs are self-documenting and can be explored

REST API Example

To get event details with venue information using REST:

# Multiple requests needed
GET /api/events/1
GET /api/venues/1
GET /api/artists?eventId=1

GraphQL Example

The same data with GraphQL:

query GetEventDetails($id: ID!) {
  event(id: $id) {
    id
    name
    description
    venue {
      name
      address
      capacity
    }
    artists {
      name
      bio
    }
  }
}

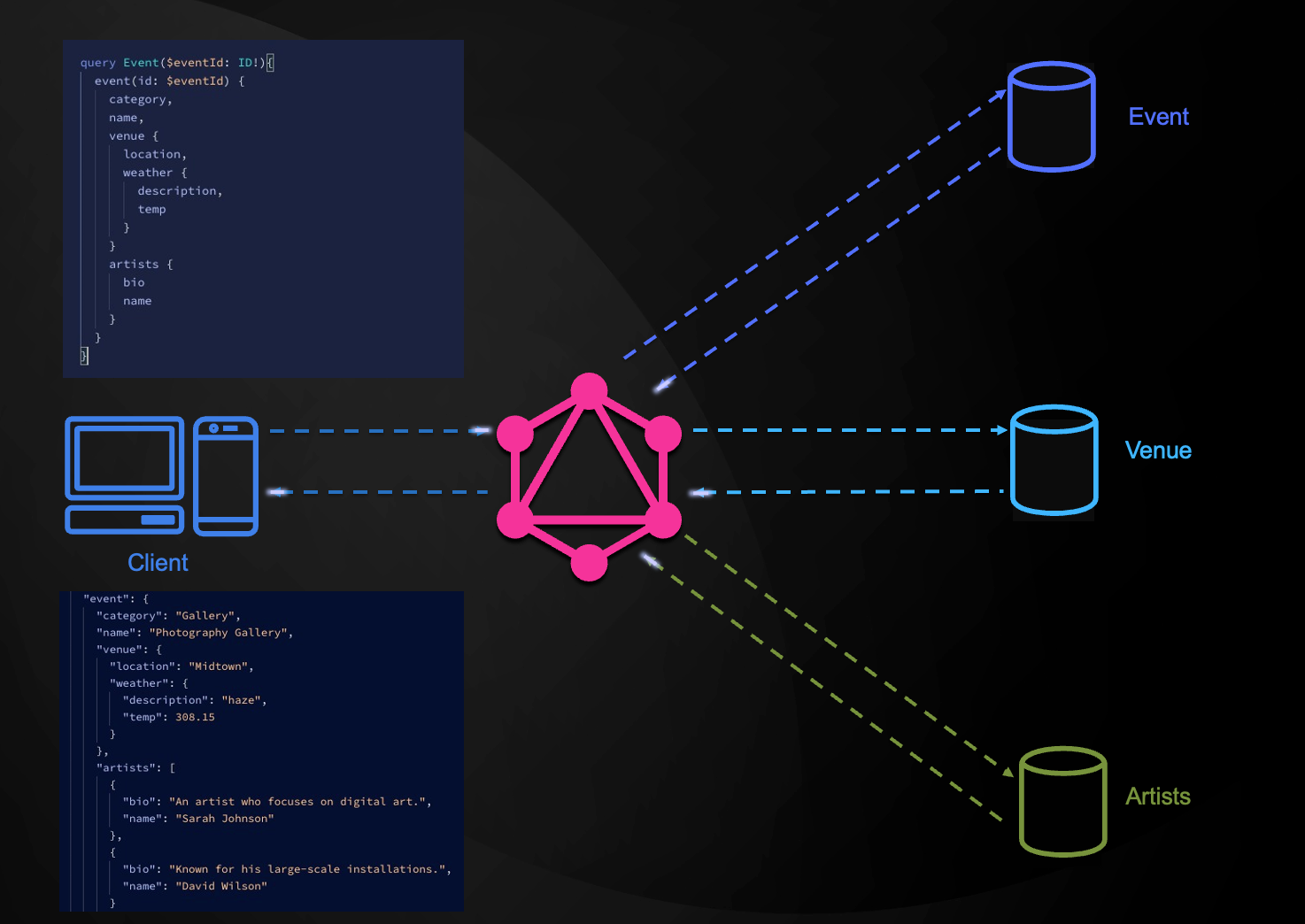

When a client sends a GraphQL query, the server intelligently parses the request to understand which backend services need to be queried. It then fetches data from multiple sources (like Event, Venue, and Artists services) in parallel, aggregates all the responses according to the query structure, and returns a single, unified JSON response. This eliminates the need for multiple API calls, reduces network traffic, and provides clients with exactly the data they need in one request.

Core GraphQL Concepts

Schema Definition Language (SDL)

GraphQL uses a schema to define the structure of your API:

type Event {
  id: ID!
  name: String!
  description: String
  eventDate: String!
  venue: Venue!
  artists: [Artist!]!
}

type Venue {
  id: ID!
  name: String!
  address: String!
  capacity: Int!
}

type Artist {
  id: ID!
  name: String!
  bio: String
}


type Query {
    events: [Event!]!
    event(id: ID!): Event
    venues: [Venue!]!
    venue(id: ID!): Venue
}

type Mutation {
    createVenue(venueInput: VenueInput!): Venue!
    createEvent(eventInput: EventInput!): Event!
}

In schema definition language (SDL), we define the schema for the API which includes the data types and the operations that can be performed on the data.

Data Types:
The schema starts by defining core data types (like Event, Venue, Artist), similar to how you define classes in Java. These outline the shape of the data you can query or mutate.

Root Types:

• Query: Specifies all the ways a client can fetch or read data from the API. You can think of it as a GET request in REST.
• Mutation: Specifies all the ways a client can write or change data in the API. You can think of it as a POST, PUT, DELETE request in REST.
• Subscription: Specifies all the ways a client can subscribe to real-time data from the server. This is similar to WebSocket or SSE.

Related topics:

• Real-Time APIs with WebSockets in Java Spring Boot
• Server-Sent Events (SSE) in Java Spring Boot

Queries: Fetching Data

Queries are used to read data from the server. They are analogous to GET requests in REST.

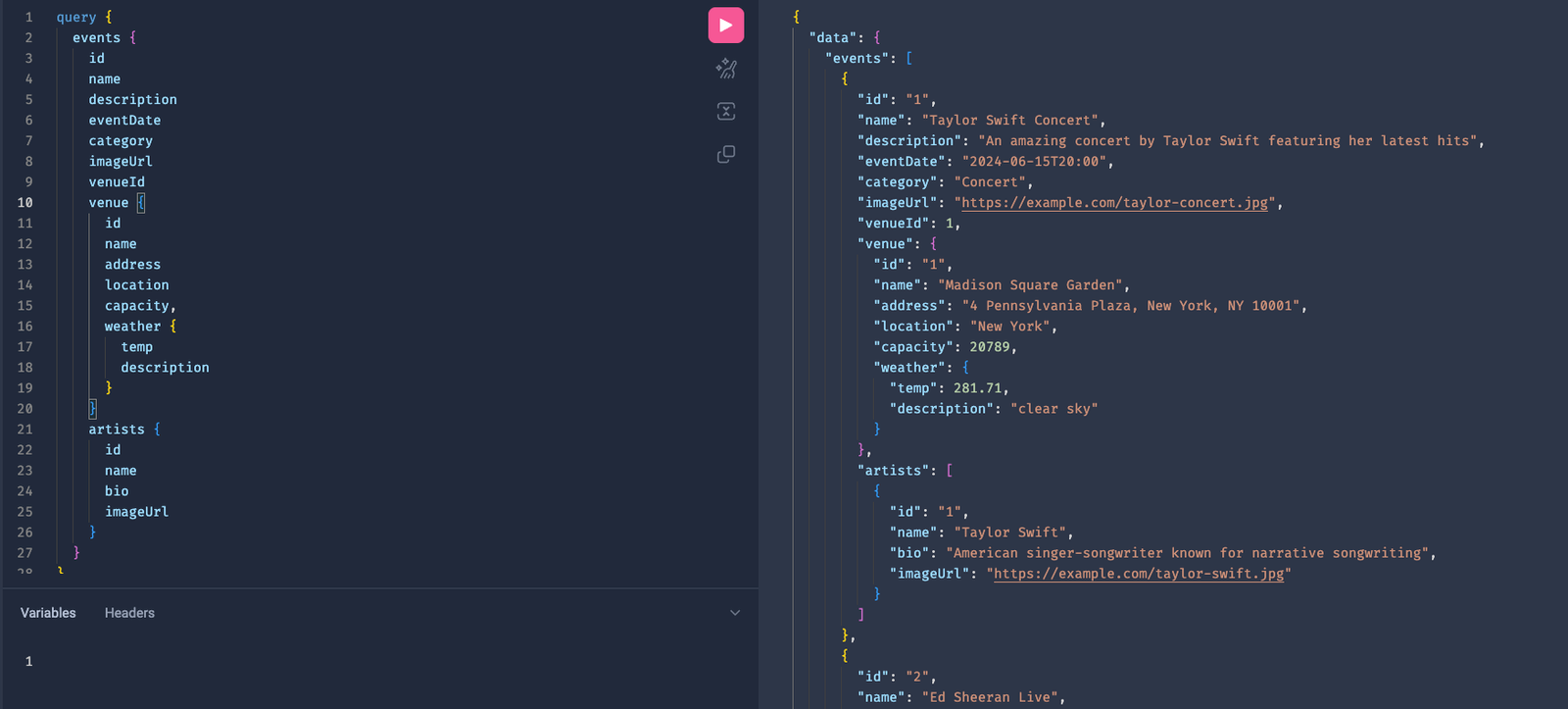

Basic Query Example:

query GetAllEvents {
  events {
    id
    name
    description
    eventDate
  }
}

Query with Variables:

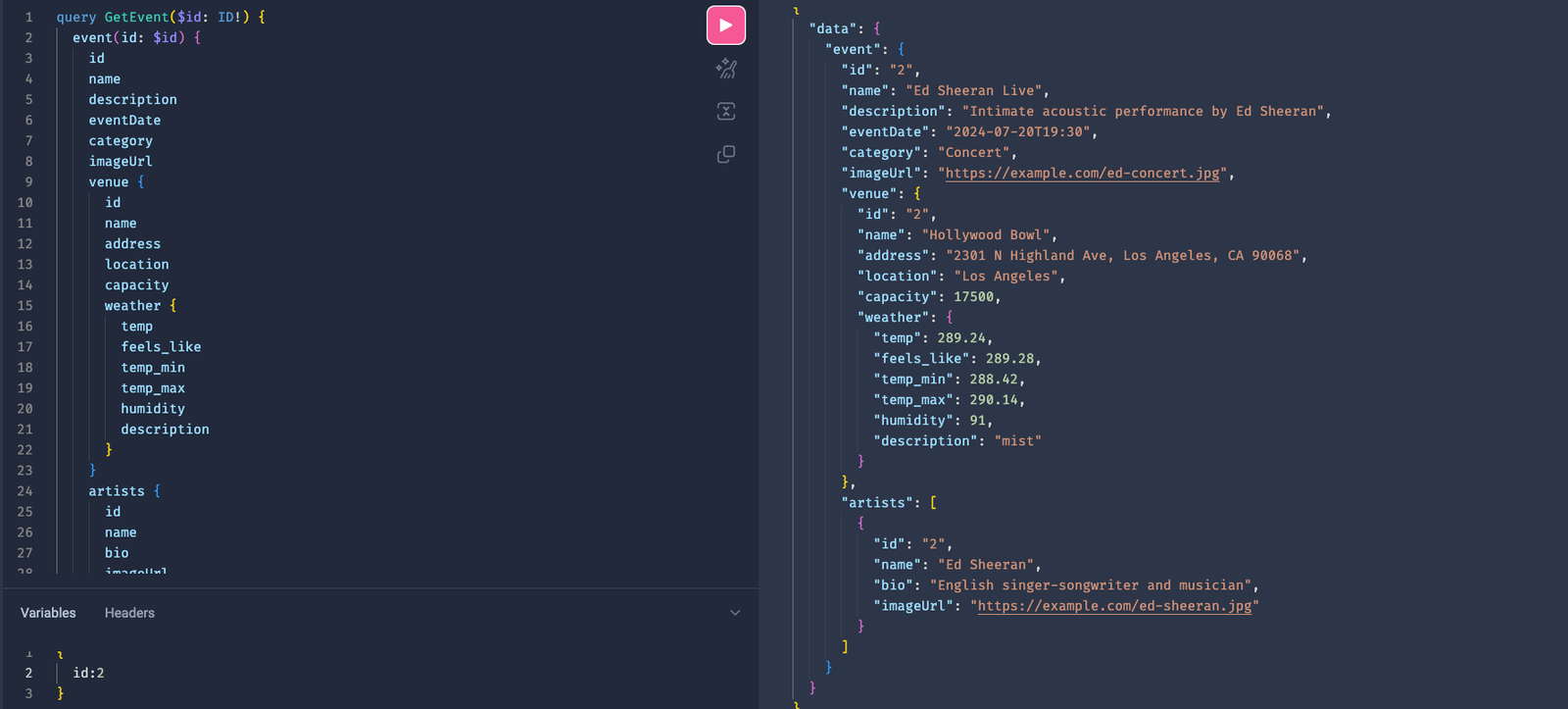

query GetEvent($id: ID!) {
  event(id: $id) {
    id
    name
    description
    venue {
      name
      address
    }
  }
}

Nested Query Example:

query GetEventWithDetails($id: ID!) {
  event(id: $id) {
    id
    name
    description
    venue {
      name
      address
      capacity
      weather {
        temp
        description
      }
    }
    artists {
      name
      bio
      imageUrl
    }
  }
}

Mutations: Modifying Data

Mutations are used to modify data on the server, similar to POST, PUT, DELETE requests in REST.

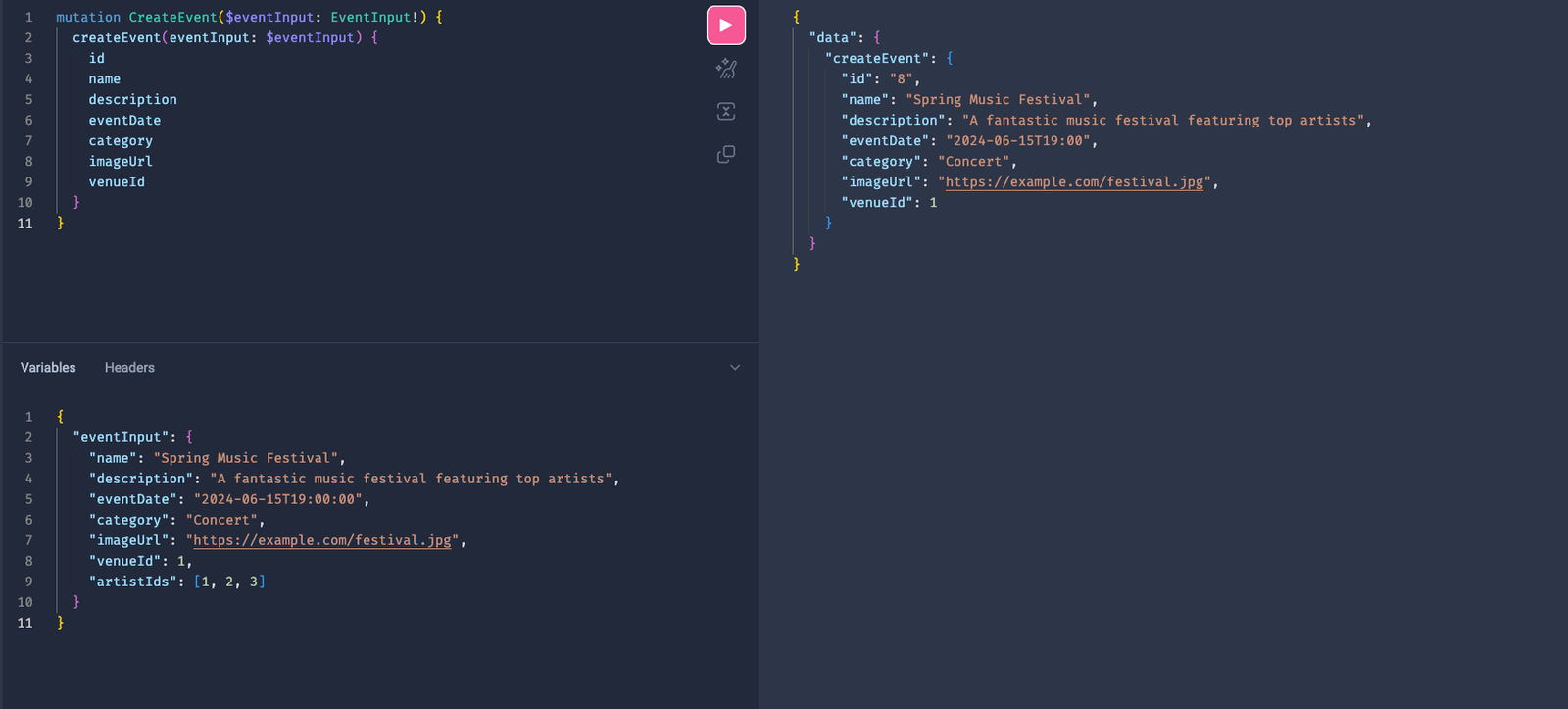

Create Event Mutation:

mutation CreateEvent($eventInput: EventInput!) {
  createEvent(eventInput: $eventInput) {
    id
    name
    description
    eventDate
    venue {
      name
    }
  }
}

Input Type Example:

input EventInput {
  name: String!
  description: String!
  eventDate: String!
  category: String!
  venueId: Int!
  artistIds: [Int!]!
}

Subscriptions: Real-time Data

Subscriptions are a feature that enables real-time, event-driven communication between a GraphQL server and its clients. Unlike queries, which fetch data once, and mutations, which modify data, subscriptions establish a persistent connection, allowing the server to push updates to the client as specific events occur on the server-side. For example, in our event booking application, we can subscribe to event updates so that when a new event is created, the client receives a notification. Below is an example of a subscription to the eventCreated event.

subscription SubscribeToEventUpdates {
    eventCreated {
        id
        name
        description
    }
}

Building GraphQL APIs with Spring Boot

Now let's build an event booking application using Spring Boot and Spring GraphQL.

Project Setup

Create a new Spring Boot project with the following dependencies:

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-graphql</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-data-jdbc</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-webmvc</artifactId>
    </dependency>
    <dependency>
        <groupId>org.postgresql</groupId>
        <artifactId>postgresql</artifactId>
        <scope>runtime</scope>
    </dependency>
</dependencies>

spring-boot-starter-graphql is the Spring Boot starter for GraphQL. It provides a comprehensive set of features for building GraphQL APIs in Spring Boot. This uses the GraphQL Java implementation under the hood.

Database Setup

We will use PostgreSQL as the database. Create a docker-compose.yml for PostgreSQL:

services:
  postgres:
    image: 'postgres:latest'
    environment:
      - 'POSTGRES_DB=eventbooking'
      - 'POSTGRES_PASSWORD=secret'
      - 'POSTGRES_USER=eventuser'
    ports:
      - '5432:5432'
    restart: unless-stopped

Define GraphQL Schema

Create src/main/resources/graphql/schema.graphqls:

type Query {
    events: [Event!]!
    event(id: ID!): Event
    venues: [Venue!]!
    venue(id: ID!): Venue
    bookings(eventId: Float!): [Booking!]!
}

type Mutation {
    createUser(userInput: UserInput!): User!
    createVenue(venueInput: VenueInput!): Venue!
    createEvent(eventInput: EventInput!): Event!
    createBooking(bookingInput: BookingInput!): Booking!
}

type Event {
    id: ID!
    name: String!
    description: String!
    eventDate: String!
    category: String!
    imageUrl: String
    venueId: Int!
    venue: Venue!
    artists: [Artist!]!
}

type Venue {
    id: ID!
    name: String!
    address: String!
    location: String!
    capacity: Int!
    events: [Event!]!
    weather: Weather!
}

type Artist {
    id: ID!
    name: String!
    bio: String!
    imageUrl: String
    events: [Event!]!
}

type Booking {
    id: ID!
    bookingDate: String!
    eventId: Int!
    userId: Int!
    price: Float!
    tickets: [Ticket!]!
}

type Ticket {
    id: ID!
    seatNo: Int!
    bookingId: Int!
    booking: Booking!
}

type Weather {
    temp: Float!
    feels_like: Float!
    temp_min: Float!
    temp_max: Float!
    humidity: Float!
    description: String!
}

input EventInput {
    name: String!
    description: String!
    eventDate: String!
    category: String!
    imageUrl: String
    venueId: Int!
    artistIds: [Int!]!
}

input BookingInput {
    eventId: Int!
    seats: [Int!]!
}

Entity Classes

Define your domain entities:

@Table("events")
public record Event(@Id Long id, String name, String description,
                   LocalDateTime eventDate, String category, String imageUrl, Long venueId) {
    public Event(String name, String description, LocalDateTime eventDate,
                String category, String imageUrl, Long venueId) {
        this(null, name, description, eventDate, category, imageUrl, venueId);
    }
}

@Table("venues")
public record Venue(@Id Long id, String name, String address,
                   String location, Integer capacity) {
    public Venue(String name, String address, String location, Integer capacity) {
        this(null, name, address, location, capacity);
    }
}

@Table("artists")
public record Artist(@Id Long id, String name, String bio, String imageUrl) {
    public Artist(String name, String bio, String imageUrl) {
        this(null, name, bio, imageUrl);
    }
}

Repository Layer

Create repository interfaces:

@Repository
public interface EventRepository extends CrudRepository<Event, Long> {
}

@Repository
public interface VenueRepository extends CrudRepository<Venue, Long> {
}

@Repository
public interface ArtistRepository extends CrudRepository<Artist, Long> {
    @Query("SELECT a.* FROM artists a JOIN event_artists ea ON a.id = ea.artist_id WHERE ea.event_id = :eventId")
    List<Artist> findByEventId(@Param("eventId") Long eventId);
}

GraphQL Controllers

Implement GraphQL resolvers using Spring annotations:

@Controller
public class EventController {

    private final EventRepository eventRepository;
    private final VenueRepository venueRepository;
    private final ArtistRepository artistRepository;
    private final EventArtistRepository eventArtistRepository;

    public EventController(EventRepository eventRepository, VenueRepository venueRepository,
                         ArtistRepository artistRepository, EventArtistRepository eventArtistRepository) {
        this.eventRepository = eventRepository;
        this.venueRepository = venueRepository;
        this.artistRepository = artistRepository;
        this.eventArtistRepository = eventArtistRepository;
    }

    @QueryMapping
    public List<Event> events() {
        return (List<Event>) eventRepository.findAll();
    }

    @QueryMapping
    public Event event(@Argument String id) {
        return eventRepository.findById(Long.valueOf(id)).orElse(null);
    }

    @SchemaMapping
    public Venue venue(Event event) {
        return venueRepository.findById(event.venueId()).orElse(null);
    }

    @SchemaMapping
    public List<Artist> artists(Event event) {
        return artistRepository.findByEventId(event.id());
    }

    @MutationMapping
    public Event createEvent(@Argument EventInput eventInput) {
        Event event = new Event(eventInput.name(), eventInput.description(),
                               LocalDateTime.parse(eventInput.eventDate()),
                               eventInput.category(), eventInput.imageUrl(),
                               eventInput.venueId().longValue());
        Event savedEvent = eventRepository.save(event);

        // Create event-artist relationships
        for (Integer artistId : eventInput.artistIds()) {
            EventArtist eventArtist = new EventArtist(savedEvent.id(), artistId.longValue());
            eventArtistRepository.save(eventArtist);
        }

        return savedEvent;
    }
}

In the above Spring Boot GraphQL implementation, several annotations are used to bridge between your Java code and the GraphQL schema:

• @QueryMapping: This annotation marks a method as a GraphQL query handler. Methods annotated with @QueryMapping provide data for queries defined in your GraphQL schema's type Query { ... }. They are responsible for fetching and returning data in response to client queries.

• @MutationMapping: Methods annotated with this are responsible for handling mutations, which are operations that modify data (such as create, update, or delete). These correspond to the mutations defined in your schema's type Mutation { ... }.

• @SchemaMapping: This annotation is used for resolving specific fields, especially nested or related data within types. For example, if your Event type has a venue field, a method with @SchemaMapping can specify how to retrieve the venue data for a given event.

• @Argument: This annotation is used on method parameters to indicate that the parameter should be populated with a GraphQL argument from the query or mutation. It makes it easy to bind incoming values from the GraphQL request directly to method parameters.

Together, these annotations make it easy to map GraphQL queries, mutations, and type fields to strongly-typed Java methods, simplifying the development of GraphQL APIs in Spring Boot.

Data Fetching with External Services

Sometimes we might need to fetch data from external services instead of the database. For example, in this example we will fetch weather data for Venues from the OpenWeatherMap API.

@Service
public class WeatherService {

    private final RestClient restClient;
    private final Map<String, Weather> weatherCache = new ConcurrentHashMap<>();

    @Value("${WEATHER_API_KEY:}")
    private String apiKey;

    public WeatherService() {
        this.restClient = RestClient.create();
    }

    public Weather getWeatherForLocation(String location) {
        if (weatherCache.containsKey(location)) {
            return weatherCache.get(location);
        }
        String geoUrl = "https://api.openweathermap.org/geo/1.0/direct?q={location}&limit=1&appid={apiKey}";
        record GeoData(double lat, double lon) {}
        var geoDataList = restClient.get()
                .uri(geoUrl, location, apiKey)
                .retrieve()
                .body(new ParameterizedTypeReference<List<GeoData>>() {});
        GeoData geoData = geoDataList.get(0);
        Double lat = geoData.lat;
        Double lon = geoData.lon;

        String weatherUrl = "https://api.openweathermap.org/data/2.5/weather?lat={lat}&lon={lon}&appid={apiKey}";
        record MainData(Double temp, Double feels_like, Double temp_min, Double temp_max, Integer humidity) {}
        record WeatherInfo(String description) {}
        record WeatherResponse(MainData main, List<WeatherInfo> weather) {}
        var weatherResponse = restClient.get()
                .uri(weatherUrl, lat, lon, apiKey)
                .retrieve()
                .body(WeatherResponse.class);

        var main = weatherResponse.main();
        var weatherInfo = weatherResponse.weather().get(0);
        var weatherData = new Weather(
            main.temp(),
            main.feels_like(),
            main.temp_min(),
            main.temp_max(),
            main.humidity(),
            weatherInfo.description()
        );
        weatherCache.put(location, weatherData);
        return weatherData;

    }

}

Venue Controller with Weather Integration

@Controller
public class VenueController {

    private final VenueRepository venueRepository;
    private final WeatherService weatherService;

    public VenueController(VenueRepository venueRepository, WeatherService weatherService) {
        this.venueRepository = venueRepository;
        this.weatherService = weatherService;
    }

    @QueryMapping
    public List<Venue> venues() {
        return (List<Venue>) venueRepository.findAll();
    }

    @QueryMapping
    public Venue venue(@Argument String id) {
        return venueRepository.findById(Long.valueOf(id)).orElse(null);
    }

    @SchemaMapping
    public Weather weather(Venue venue) {
        return weatherService.getWeatherForLocation(venue.location());
    }

    @MutationMapping
    public Venue createVenue(@Argument VenueInput venueInput) {
        Venue venue = new Venue(venueInput.name(), venueInput.address(),
                               venueInput.location(), venueInput.capacity().intValue());
        return venueRepository.save(venue);
    }
}

Testing

For manual testing of the GraphQL API, we can use the GraphiQL Playground. It is a tool that allows us to test the GraphQL API using a graphical interface.

Enable GraphiQL by adding this config to the application.properties file.

spring.graphql.graphiql.enabled=true

Below are some screenshots of the GraphiQL Playground:

GraphQL Best Practices

• Model your business domain as a graph to leverage GraphQL's strengths in representing complex relationships
• Handle GraphQL requests over HTTP by following standard protocols and using proper status codes
• Delegate authorization logic to the business logic layer for clear separation of concerns
• Implement pagination using cursor-based or offset-based methods to traverse lists efficiently
• Design and evolve your schema over time without versioning by adding fields and deprecating old ones
• Use global object identification with unique IDs to enable simple caching and object lookups
• Optimize performance by implementing DataLoader for batch loading and solving N+1 problems
• Protect your GraphQL API with authentication, rate limiting, and query complexity analysis
• Handle errors gracefully by providing clear messages and proper error codes for debugging
• Monitor and observe your API with logging, performance tracking, and distributed tracing

When to Use GraphQL

Advantages

• Efficient Data Fetching: Get exactly what you need
• Strong Typing: Compile-time error checking
• Declarative Data Queries: Clients specify exactly what data they need
• Real-time Subscriptions: Built-in support for live data
• Versioning and Evolution: Add fields without breaking changes

Disadvantages

• Learning Curve: More complex than REST
• Caching: HTTP caching is more challenging
• Security: GraphQL APIs can be ope­n to security risks. These risks include­ excessive que­ry depth or complexity attacks.
• Query Complexity: Can lead to expensive operations

Use Cases

• Complex and Evolving Data Requirements: GraphQL is particularly well-suited for modern applications with complex data requirements.
• Multiple Client Platforms and Devices: When serving data to a variety of clients (web, mobile, different screen sizes), each with potentially different data display needs, GraphQL's flexibility allows each client to tailor its data requests precisely, optimizing performance and reducing bandwidth usage.
• Microservices: In a microservices environment, where data might be distributed across multiple services, GraphQL can act as a unified API layer, allowing clients to query and combine data from various microservices through a single endpoint.
• Real-time Applications: Subscriptions for live data
• Complex Data Relationships: Multiple related entities

Conclusion

GraphQL represents a significant evolution in API design, offering developers a more efficient and flexible way to build APIs. With its strong typing, precise data fetching, and excellent developer experience, GraphQL is particularly well-suited for modern applications with complex data requirements.

To stay updated with the latest updates in Java and Spring, follow us on LinkedIn and Medium.

You can find the source code for this blog on our GitHub Repository.

References

• GraphQL Official Documentation
• Spring GraphQL Documentation
• GraphQL Best Practices
