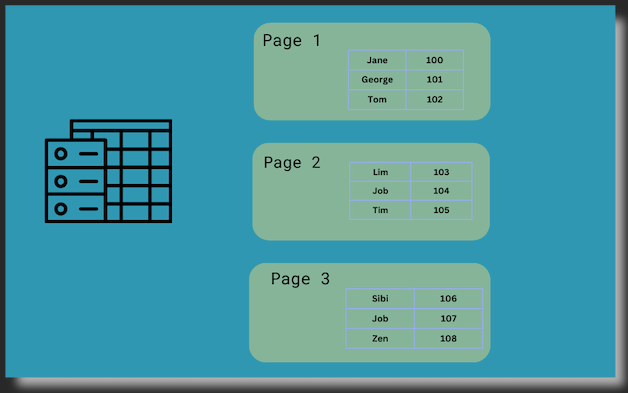

Pagination is a crucial aspect of API design when dealing with large datasets. Instead of returning all records at once, pagination breaks the results into manageable chunks or "pages." In this blog post, we'll explore two popular pagination techniques, offset and cursor based and implement both in a Spring Boot application with search capabilities.
Offset pagination, also known as page-based pagination, is the traditional approach where you specify:
The database then calculates which records to return based on these parameters.
First offset is calculated using the formula:
offset = pageNumber × pageSize // when page number starts from 0 or offset = (pageNumber - 1) × pageSize // when page number starts from 1
Then we will use a query to skip records till the offset and the return the next set of records.
Let's see how this works with an example:
----------------------------------------------------- | StudentID | Name | Age | Course | ... | ----------------------------------------------------- | 1 | Alice | 20 | Computer Sci| ... | <-- Row 1 | 2 | Bob | 21 | Physics | ... | <-- Row 2 | 3 | Charlie | 19 | Math | ... | <-- Row 3 | 4 | David | 22 | Chemistry | ... | <-- Row 4 | 5 | Eve | 20 | Biology | ... | <-- Row 5 | 6 | Frank | 21 | History | ... | <-- Row 6 | 7 | Grace | 19 | English | ... | <-- Row 7 | 8 | Henry | 22 | Economics | ... | <-- Row 8 | 9 | Ivy | 20 | Sociology | ... | <-- Row 9 | 10 | Jack | 21 | Psychology | ... | <-- Row 10 | 11 | Kelly | 19 | Art | ... | <-- Row 11 | 12 | Liam | 22 | Music | ... | <-- Row 12 | 13 | Mia | 20 | Geography | ... | <-- Row 13 | 14 | Noah | 21 | Philosophy | ... | <-- Row 14 | 15 | Olivia | 19 | Political Sc| ... | <-- Row 15 | ... | ... | ... | ... | ... | -----------------------------------------------------
For Page 3 with a Page Size of 5:
OFFSET = (Page Number - 1) * Page Size = (3 - 1) * 5 = 10
----------------------------------------------------- | StudentID | Name | Age | Course | ... | (Row Number) ----------------------------------------------------- | 1 | Alice | 20 | Computer Sci| ... | (1) <-- Skipped | 2 | Bob | 21 | Physics | ... | (2) <-- Skipped | 3 | Charlie | 19 | Math | ... | (3) <-- Skipped | 4 | David | 22 | Chemistry | ... | (4) <-- Skipped | 5 | Eve | 20 | Biology | ... | (5) <-- Skipped | 6 | Frank | 21 | History | ... | (6) <-- Skipped | 7 | Grace | 19 | English | ... | (7) <-- Skipped | 8 | Henry | 22 | Economics | ... | (8) <-- Skipped | 9 | Ivy | 20 | Sociology | ... | (9) <-- Skipped | 10 | Jack | 21 | Psychology | ... | (10) <-- Skipped | 11 | Kelly | 19 | Art | ... | (11) <-- Selected (Page 3 - Row 1) | 12 | Liam | 22 | Music | ... | (12) <-- Selected (Page 3 - Row 2) | 13 | Mia | 20 | Geography | ... | (13) <-- Selected (Page 3 - Row 3) | 14 | Noah | 21 | Philosophy | ... | (14) <-- Selected (Page 3 - Row 4) | 15 | Olivia | 19 | Political Sc| ... | (15) <-- Selected (Page 3 - Row 5) | ... | ... | ... | ... | ... | ----------------------------------------------------- ^ | **OFFSET = 10 Records Skipped**
After skipping the 10 records, the LIMIT clause (equal to the Page Size of 5 in this case) is applied to select the next 5 records.
Result: Rows 11 through 15 are retrieved and represent Page 3 of the student data.
This translates to the SQL query:
SELECT * FROM students ORDER BY id LIMIT 5 OFFSET 10;
Cursor pagination uses a "pointer" or "cursor" to track the user's position in the result set. Instead of using page numbers, the client uses a reference value from the last item they've seen to fetch the next set of results.
Cursor pagination uses a "pointer" or "cursor" to track the user's position in the result set. Let's see how this works with an example:
----------------------------------------------------- | StudentID | Name | Age | Course | ... | ----------------------------------------------------- | 1 | Alice | 20 | Computer Sci| ... | | 2 | Bob | 21 | Physics | ... | | 3 | Charlie | 19 | Math | ... | | 4 | David | 22 | Chemistry | ... | | 5 | Eve | 20 | Biology | ... | | 6 | Frank | 21 | History | ... | | 7 | Grace | 19 | English | ... | | 8 | Henry | 22 | Economics | ... | | 9 | Ivy | 20 | Sociology | ... | | 10 | Jack | 21 | Psychology | ... | | 11 | Kelly | 19 | Art | ... | | 12 | Liam | 22 | Music | ... | | 13 | Mia | 20 | Geography | ... | | 14 | Noah | 21 | Philosophy | ... | | 15 | Olivia | 19 | Political Sc| ... | | ... | ... | ... | ... | ... | -----------------------------------------------------
For the first request, we typically use a default "high" cursor value to get the first set of records:
Cursor = 999999 (Very high value to get the first page) Limit = 5
The query becomes:
SELECT * FROM students WHERE StudentID < 999999 ORDER BY StudentID DESC LIMIT 5;
Result:
----------------------------------------------------- | StudentID | Name | Age | Course | ... | ----------------------------------------------------- | 15 | Olivia | 19 | Political Sc| ... | <-- Selected | 14 | Noah | 21 | Philosophy | ... | <-- Selected | 13 | Mia | 20 | Geography | ... | <-- Selected | 12 | Liam | 22 | Music | ... | <-- Selected | 11 | Kelly | 19 | Art | ... | <-- Selected ----------------------------------------------------- ^ | Last record's ID becomes the next cursor (11)
For the next page, we use the ID of the last record we received as the cursor:
Cursor = 11 (Last ID from previous result) Limit = 5
The query becomes:
SELECT * FROM students WHERE StudentID < 11 ORDER BY StudentID DESC LIMIT 5;
Result:
----------------------------------------------------- | StudentID | Name | Age | Course | ... | ----------------------------------------------------- | 10 | Jack | 21 | Psychology | ... | <-- Selected | 9 | Ivy | 20 | Sociology | ... | <-- Selected | 8 | Henry | 22 | Economics | ... | <-- Selected | 7 | Grace | 19 | English | ... | <-- Selected | 6 | Frank | 21 | History | ... | <-- Selected ----------------------------------------------------- ^ | Last record's ID becomes the next cursor (6)
Now let us compare the query plan and cost for both pagination methods. I am running this against a Student table in a postgres db running in my machine with 1,000,000 records.
Offset Pagination Query Plan:
EXPLAIN ANALYZE select * from students s1_0 where 1=1 order by s1_0.id desc offset 500000 rows fetch first 1000 rows only;
Limit (cost=24062.33..24110.45 rows=1000 width=142) (actual time=145.510..145.717 rows=1000 loops=1) -> Index Scan Backward using students_pkey on students s1_0 (cost=0.42..48050.42 rows=998466 width=142) (actual time=0.126..135.611 rows=501000 loops=1) Planning Time: 0.336 ms Execution Time: 145.783 ms
Cursor Pagination Query Plan:
EXPLAIN ANALYZE select * from students s1_0 where s1_0.id < 500000 order by s1_0.id desc fetch first 1000 rows only;
Limit (cost=0.42..51.06 rows=1000 width=142) (actual time=0.251..0.676 rows=1000 loops=1) -> Index Scan Backward using students_pkey on students s1_0 (cost=0.42..20376.53 rows=402406 width=142) (actual time=0.250..0.619 rows=1000 loops=1) Index Cond: (id < 500000) Planning Time: 0.511 ms Execution Time: 0.771 ms
Unlike offset pagination, which must process and discard the offset records, cursor pagination directly starts from the relevant position in the index.
If you take an analogy with a book, offset pagination is like flipping through the pages to find the right one, while cursor pagination is like using a bookmark to jump directly to the last read page.
Now we will implement both offset and cursor pagination in a Spring Boot application using Spring Data JPA. We will create simple student management application with a REST API to demonstrate both pagination techniques.
Create a Spring Boot Project: Use Spring Initializr to create a new Spring Boot project with the following dependencies:
Docker Compose: Create a docker-compose.yml file to run PostgreSQL locally and also pgadmin to query the database.
services: postgres: image: 'postgres:latest' environment: - 'POSTGRES_DB=student-management-app-db' - 'POSTGRES_PASSWORD=secret' - 'POSTGRES_USER=student-management-user' ports: - '5432:5432' restart: unless-stopped pgadmin: image: dpage/pgadmin4 environment: PGADMIN_DEFAULT_EMAIL: admin@example.com PGADMIN_DEFAULT_PASSWORD: admin ports: - "8081:80" depends_on: - postgres restart: unless-stopped
application.properties file:# JPA/Hibernate properties to auto-create tables spring.jpa.hibernate.ddl-auto=update # Set default profile to dev spring.profiles.active=dev # Batch configuration to optimize bulk inserts spring.jpa.properties.hibernate.jdbc.batch_size=50 spring.jpa.properties.hibernate.order_inserts=true # Config for logging SQL queries logging.level.org.hibernate.SQL=debug logging.level.org.hibernate.orm.jdbc.bind=trace spring.jpa.properties.hibernate.format_sql=true
Let us add our Student entity with the following fields:
@Entity @Table(name = "students") @Data public class Student { @Id @GeneratedValue(strategy = GenerationType.IDENTITY) private Long id; private String name; private LocalDate dob; private String address; private String phoneNumber; private String department; private LocalDate joiningDate; private String email; private String enrollmentNumber; }
We will also create a DTO StudentSearchCriteria to hold the search criteria and pagination parameters.
@Data public class StudentSearchCriteria { private String name; private String department; private String address; private String email; private String phoneNumber; private String enrollmentNumber; private Integer page = 0; // Default value private Integer size = 10; // Default value private String[] sort = {"id", "desc"}; }
public interface StudentRepository extends JpaRepository<Student, Long>, JpaSpecificationExecutor<Student> { }
Let us add a service class which will handle student creation and listing with search criteria.
For search we will use the JpaSpecificationExecutor interface to create dynamic queries based on the search criteria. We build a Specification object based on search criteria in StudentSpecification that can be passed to the repository methods.
@Service @RequiredArgsConstructor public class StudentService { private final StudentRepository studentRepository; public Student createStudent(Student student) { return studentRepository.save(student); } public Page<Student> findStudentsWithCriteria(StudentSearchCriteria criteria) { return studentRepository.findAll( StudentSpecification.withSearchCriteria(criteria) ); } } public class StudentSpecification { public static Specification<Student> withSearchCriteria(StudentSearchCriteria criteria) { return (root, query, criteriaBuilder) -> { List<Predicate> predicates = new ArrayList<>(); addPredicateIfNotNull(predicates, criteria.getName(), "name", root, criteriaBuilder); addPredicateIfNotNull(predicates, criteria.getDepartment(), "department", root, criteriaBuilder); addPredicateIfNotNull(predicates, criteria.getAddress(), "address", root, criteriaBuilder); addPredicateIfNotNull(predicates, criteria.getEmail(), "email", root, criteriaBuilder); addPredicateIfNotNull(predicates, criteria.getPhoneNumber(), "phoneNumber", root, criteriaBuilder); addPredicateIfNotNull(predicates, criteria.getEnrollmentNumber(), "enrollmentNumber", root, criteriaBuilder); return criteriaBuilder.and(predicates.toArray(new Predicate[0])); }; } private static void addPredicateIfNotNull(List<Predicate> predicates, String value, String fieldName, Root<Student> root, CriteriaBuilder criteriaBuilder) { if (value != null && !value.isEmpty()) { predicates.add(criteriaBuilder.like( criteriaBuilder.lower(root.get(fieldName)), "%" + value.toLowerCase() + "%" )); } } }
Other option for implementing search is to use query by example (QBE) using ExampleMatcher and Example classes.
public Page<Student> findStudentsWithExample(StudentSearchCriteria criteria, Pageable pageable) { Student studentExample = new Student(); studentExample.setName(criteria.getName()); studentExample.setDepartment(criteria.getDepartment()); studentExample.setAddress(criteria.getAddress()); studentExample.setEmail(criteria.getEmail()); studentExample.setPhoneNumber(criteria.getPhoneNumber()); studentExample.setEnrollmentNumber(criteria.getEnrollmentNumber()); ExampleMatcher matcher = ExampleMatcher.matchingAll() .withIgnoreCase() .withStringMatcher(ExampleMatcher.StringMatcher.CONTAINING) .withIgnoreNullValues(); Example<Student> example = Example.of(studentExample, matcher); return studentRepository.findAll(example, pageable); }
Now let us implement offset pagination
We can add offset pagination to our controller by using the Pageable interface provided by Spring Data JPA. Let us change our service method to accept a Pageable parameter and return a Page<Student> object.
public Page<Student> findStudentsWithCriteria(StudentSearchCriteria studentSearchCriteria, Pageable pageable) { return studentRepository.findAll(StudentSpecification.withSearchCriteria(studentSearchCriteria), pageable); }
@RestController @RequestMapping("/api/students") @AllArgsConstructor public class StudentController { private final StudentService studentService; @GetMapping public ResponseEntity<Page<Student>> getAllStudents(@ModelAttribute StudentSearchCriteria criteria) { String sortField = criteria.getSort()[0]; String sortDirection = criteria.getSort()[1]; Sort.Direction direction = sortDirection.equalsIgnoreCase("asc") ? Sort.Direction.ASC : Sort.Direction.DESC; Sort sortOrder = Sort.by(direction, sortField); Pageable pageable = PageRequest.of(criteria.getPage(), criteria.getSize(), sortOrder); Page<Student> studentsPage = studentService.findStudentsWithCriteria(criteria, pageable); return new ResponseEntity<>(studentsPage, HttpStatus.OK); } }
To test this we need to load some data. I have created a DataLoader class to load some sample data into the database. You can find that in the github repository.
After loading the data, you can test the API using Postman or any other API testing tool. We will use httpie to test the API.
http GET "http://localhost:8080/api/students?page=1000&size=5"
HTTP/1.1 200 Connection: keep-alive Content-Type: application/json Date: Thu, 10 Apr 2025 14:46:43 GMT Keep-Alive: timeout=60 Transfer-Encoding: chunked Vary: Origin Vary: Access-Control-Request-Method Vary: Access-Control-Request-Headers { "content": [ { "address": "906 Nana Knoll, Windlerburgh, SD 86681-5909", "department": "Computer Science", "dob": "2019-09-14", "email": "arianna.bosco@hotmail.com", "enrollmentNumber": "CO24181", "id": 995000, "joiningDate": "2024-11-12", "name": "Ms. Maya Hahn", "phoneNumber": "(277) 617-0505" }, { "address": "10071 Gulgowski Parks, Gibsonborough, MI 37851", "department": "Computer Science", "dob": "2021-12-27", "email": "mazie.bosco@yahoo.com", "enrollmentNumber": "CO23727", "id": 994999, "joiningDate": "2023-01-20", "name": "Johnny Mann", "phoneNumber": "840.122.3269" } // ... 3 more records ], "empty": false, "first": false, "last": false, "number": 1000, "numberOfElements": 5, "pageable": { "offset": 5000, "pageNumber": 1000, "pageSize": 5, "paged": true, "sort": { "empty": false, "sorted": true, "unsorted": false }, "unpaged": false }, "size": 5, "sort": { "empty": false, "sorted": true, "unsorted": false }, "totalElements": 1000000, "totalPages": 200000 }
If you check the logs now you will see the SQL query generated by Spring Data JPA:
select s1_0.id, s1_0.address, s1_0.department, s1_0.dob, s1_0.email, s1_0.enrollment_number, s1_0.joining_date, s1_0.name, s1_0.phone_number from students s1_0 where 1=1 order by s1_0.id desc offset ? rows fetch first ? rows only binding parameter (1:INTEGER) <- [5000] binding parameter (2:INTEGER) <- [5] select count(s1_0.id) from students s1_0 where 1=1
You can see the offset and limit values are passed as parameters to the query. Also Spring runs a count query to get the total number of records in the table. This is useful for pagination as it allows us to calculate the total number of pages.
With search criteria:
http GET "http://localhost:8080/api/students?page=0&size=5&sort=id,desc&name=John"
First we will use repository method to implement cursor pagination.
We will still use Pageable to pass the size, but offset will be set as 0. Also we will add a condition for cursor. The cursor will be the last record's ID from the previous page.
public List<Student> findStudentsWithCursorAndCriteria(Long cursor, int size, StudentSearchCriteria criteria) { Pageable pageable = PageRequest.of(0, size, Sort.by("id").descending()); Specification<Student> spec = StudentSpecification.withSearchCriteria(criteria) .and((root, query, criteriaBuilder) -> { return criteriaBuilder.lessThan(root.get("id"), cursor); }); return studentRepository.findAll(spec, pageable).getContent(); }
An alternative approach using CriteriaAPI directly:
public List<Student> findStudentsWithCursorAndCriteria(Long cursor, int size, StudentSearchCriteria criteria) { CriteriaBuilder criteriaBuilder = entityManager.getCriteriaBuilder(); CriteriaQuery<Student> query = criteriaBuilder.createQuery(Student.class); Root<Student> root = query.from(Student.class); Specification<Student> spec = StudentSpecification.withSearchCriteria(criteria); Predicate predicate = spec.toPredicate(root, query, criteriaBuilder); Predicate cursorPredicate = criteriaBuilder.lessThan(root.get("id"), cursor); query.where(criteriaBuilder.and(predicate, cursorPredicate)); query.orderBy(criteriaBuilder.desc(root.get("id"))); return entityManager.createQuery(query) .setMaxResults(size) .getResultList(); }
We will add a new endpoint to the controller to handle cursor pagination requests. The endpoint will accept a cursor value and size as query parameters.
@GetMapping("/cursor") public ResponseEntity<List<Student>> getAllStudentsCursorPagination( @RequestParam(required = false, defaultValue = "99999999999") Long cursor, @RequestParam(defaultValue = "10") int size, @ModelAttribute StudentSearchCriteria criteria) { List<Student> students = studentService.findStudentsWithCursorAndCriteria(cursor, size, criteria); return new ResponseEntity<>(students, HttpStatus.OK); }
You can test the cursor pagination API using httpie as follows:
http GET "http://localhost:8080/api/students/cursor?cursor=100&size=10"
HTTP/1.1 200 Connection: keep-alive Content-Type: application/json Date: Thu, 10 Apr 2025 14:57:36 GMT Keep-Alive: timeout=60 Transfer-Encoding: chunked Vary: Origin Vary: Access-Control-Request-Method Vary: Access-Control-Request-Headers [ { "address": "Apt. 064 20143 Swift Expressway, Colbyville, TX 28454", "department": "Electrical Engineering", "dob": "2019-11-17", "email": "gertrud.windler@gmail.com", "enrollmentNumber": "EL24190", "id": 99, "joiningDate": "2024-06-23", "name": "Charise Ondricka", "phoneNumber": "(648) 009-9370" }, { "address": "Suite 311 22250 Jerilyn Ridges, South Matt, DE 48976-4431", "department": "Civil Engineering", "dob": "2024-05-02", "email": "violet.hegmann@hotmail.com", "enrollmentNumber": "CI22730", "id": 98, "joiningDate": "2022-06-09", "name": "Reinaldo Sawayn", "phoneNumber": "084.327.5967" }, // ... 8 more records ]
From the logs we can see the query getting executed and the parameters
select s1_0.id, s1_0.address, s1_0.department, s1_0.dob, s1_0.email, s1_0.enrollment_number, s1_0.joining_date, s1_0.name, s1_0.phone_number from students s1_0 where 1=1 and s1_0.id<? order by s1_0.id desc fetch first ? rows only binding parameter (1:BIGINT) <- [100] binding parameter (2:INTEGER) <- [10]
I have also built a simple UI using Next JS to demonstrate integration with the API. You can find the code in the GitHub Repo repository or watch the video below.
Choosing the right pagination strategy depends on your application's requirements. Offset pagination is simpler but can be inefficient for large datasets, while cursor pagination offers consistent performance but requires more implementation effort.
Spring Boot and Spring Data JPA provide flexible tools to implement both strategies. By understanding the strengths and weaknesses of each approach, you can make informed decisions about which pagination method to use in your applications.
For most modern applications with large datasets, cursor pagination is becoming the preferred choice due to its performance advantages, especially when implementing infinite scrolling interfaces common in today's web and mobile apps.
You can find the source code here.
